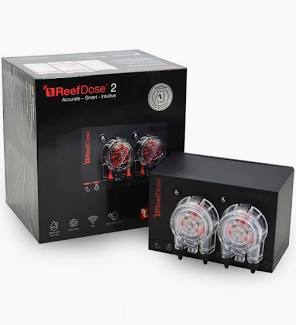

Red Sea ReefDose2

ReefDose is designed and built specifically for the daily supplementing of reef aquariums.  ReefDose uses bespoke (patent-pending) single-drop-accuracy dosing heads together with an advanced controller that provides a full suite of features.

Features

• Single drop accuracy dosing heads with a direct-drive planetary gear-motor, provides an accuracy of ± 0.05ml or an average deviation of 0.5% (over 10ml).
• 2 easy-set, smart dosing options for each head, that are automatically combined into one coordinated schedule for the complete device.
• Easy assembly click-on/off dosing heads (no tools or alignment required).
• Automatic delay between the heads to prevent chemical interaction between supplements.
• Daily dose per head of 0.2ml up to 1000ml in increments of 0.1ml.
• On-demand manual dosing.
• Secured connectors for flexible tubing: OD 5mm – ID 3mm.
• 3 dosing flow rates: Whisper 15ml/min, Regular 30ml/min, Turbo 45 ml/min.
• Motor life expectancy of 10 years – based on 250ml/day/head.

2 Head Pump Dimensions - 5.1" x 4.1"

4 Head Pump Dimensions - 8.9" x 4.1"
